Description:
2. Copper signal wire, strong anti-interference, provide better signal.
3. Antenna booster.
4. Thickened horse-mouth metal shielding cover, all-round protection.
5. Work for FM and RDS radio stations.
6. Antenna amplifier project length: about 660mm / 25.9in.

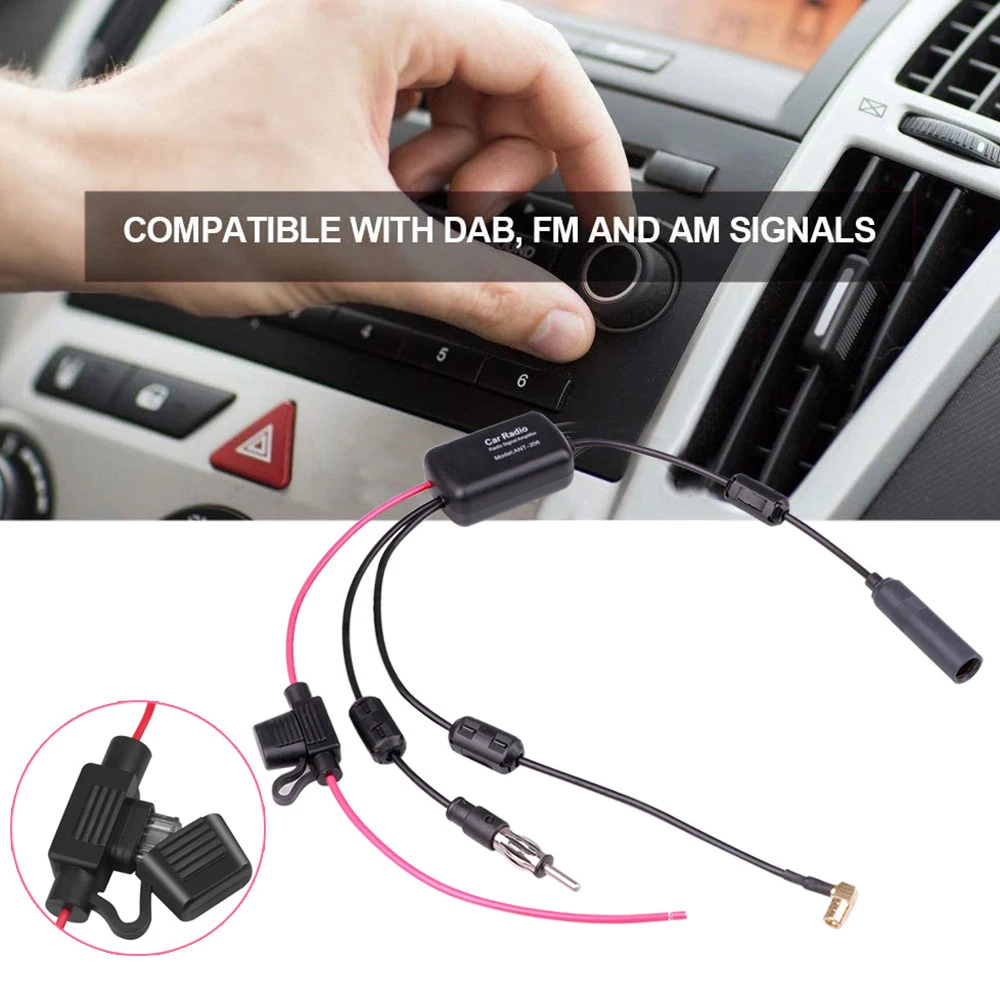

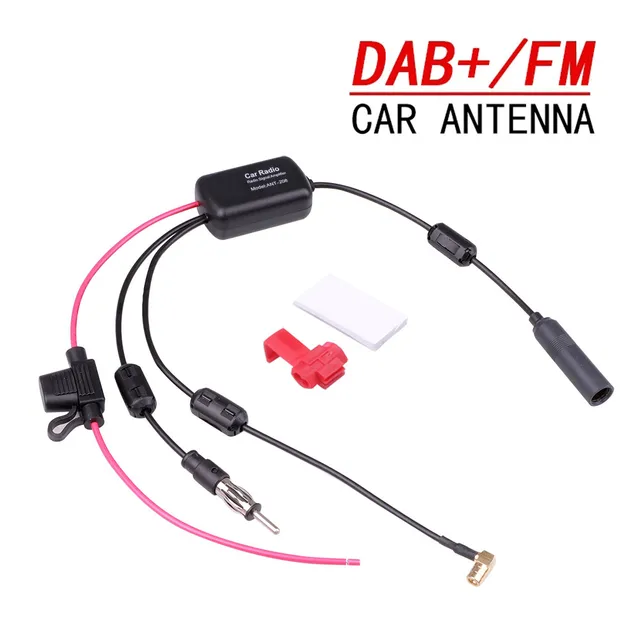

7. This active adapter/splitter allows your standard non-amplified FM car antenna to receive DAB digital radio signals, allowing you to keep your existing antenna and install DAB after-sales radio without the need for additional DAB antennas.
8. Quick and easy installation, which can save your time and money when installing after-sales DAB stereo. The antenna installed on the windshield can be greatly improved without installing a second antenna
Installation:

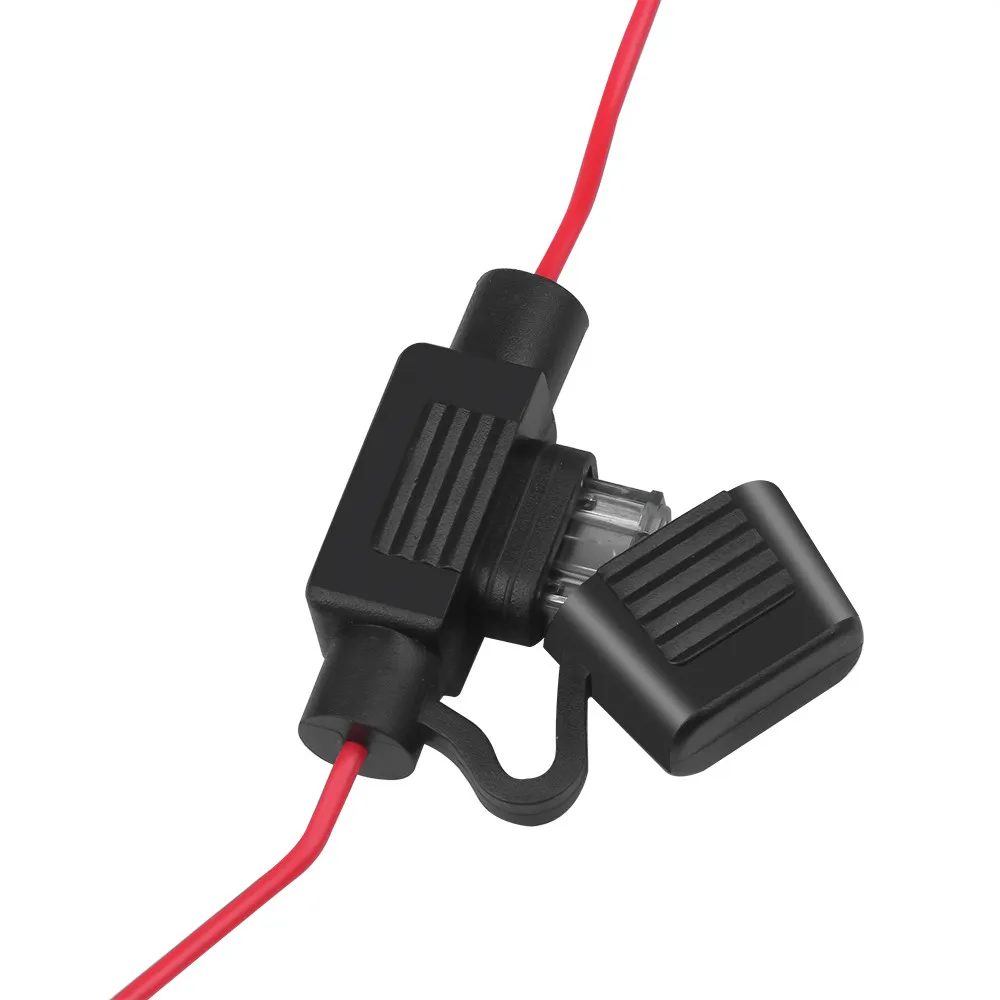

Simply insert the antenna connection of the host directly, and then insert the DAB plug into the DAB socket on the back of the host.With the radio on, connect the red wire to the 12-volt aerial power line
Specification:

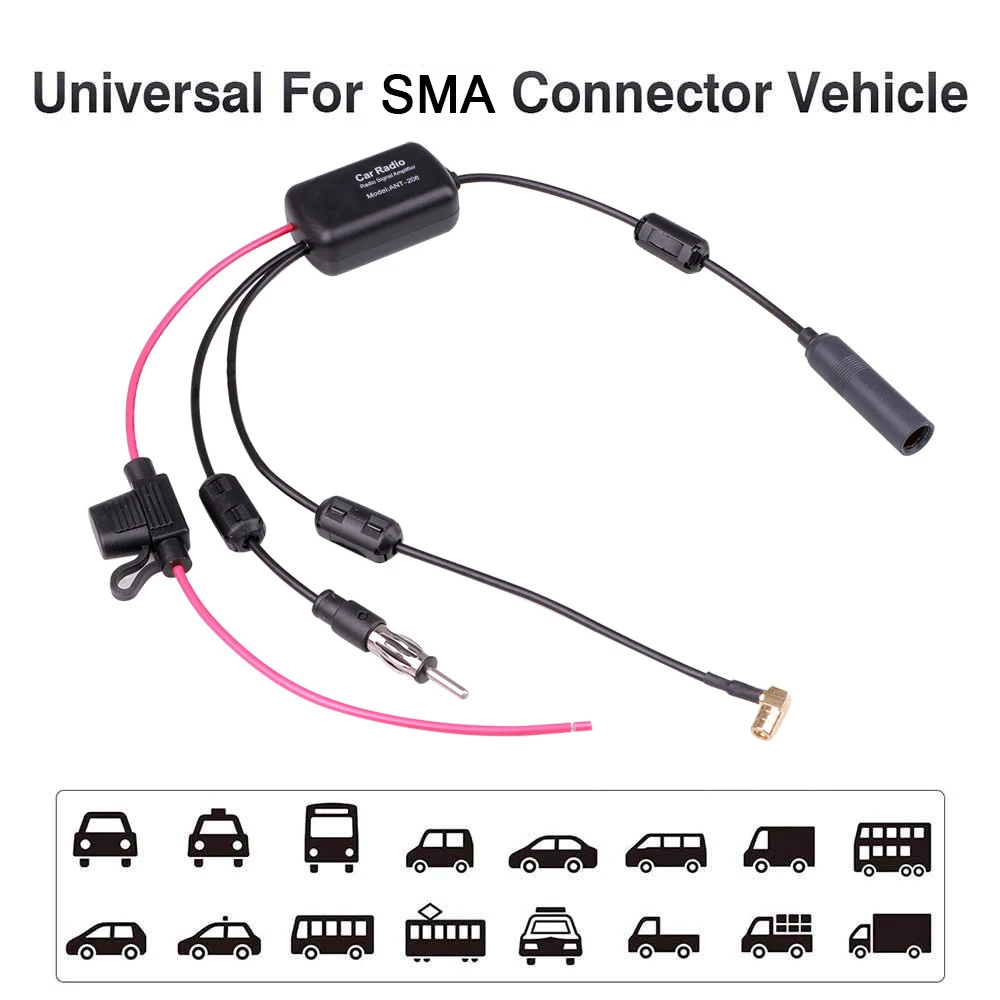

Connector: Car antenna plug and SMB female right angle
Plastic shell: ABS
Frequency range: 88-108MHz 170-240MHz
Amplification gain: 22±3dB
Output impedance: 75Ω
Standing wave ratio: ≤2.5
Noise figure: ≤6dB
Maximum output level: 108dBµV
Current: ≤70mA
Features:
1. Enhance the radio signal and reduce the noise.
2. Copper signal wire, strong anti-interference, providing better signal.
3. Antenna booster.
4. Thicken the horse mouth metal shielding cover, all-round protection.
5. Work for both AM and FM radio stations.
6. Antenna amplifier item length: about 330mm / 11.81in .
7. Able to provide high output current, low harmonic distortion and cross, ensure security operation.
8. Improved performance of TDA2002 (pin - to - pin compatibility).
9. Very low external component count.
10. Easy to assemble, save cost and space.
11. Portable, high accuracy.
Parameters:
1. Material: electronic components, metal, plastic
2. Color: black

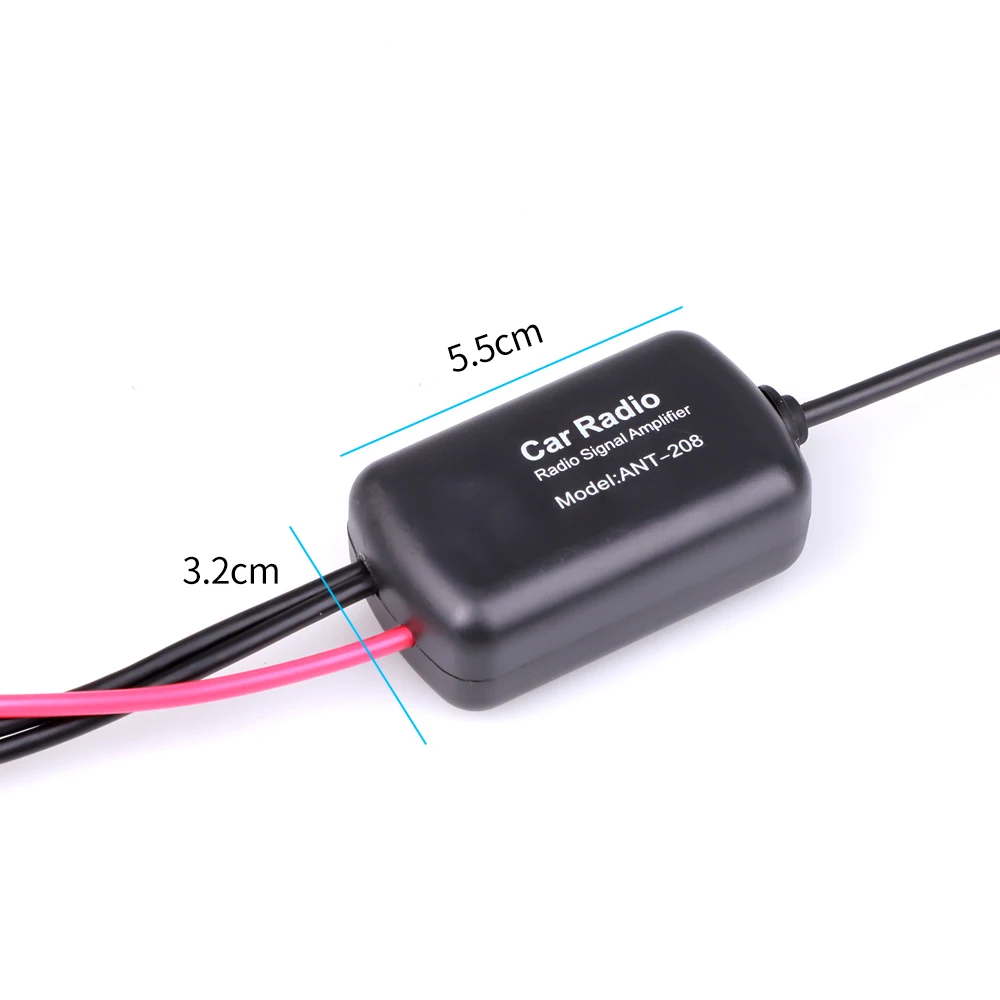

3. Product size (L x W x H): about 5.500 x 3.500 x 1.500 cm / 2.165 x 1.378 x 0.591 inches
4. Package size (L x W x H): about 17.500 x 10.000 x 2.000 cm / 6.890 x 3.937 x 0.787 inches
Packing List:

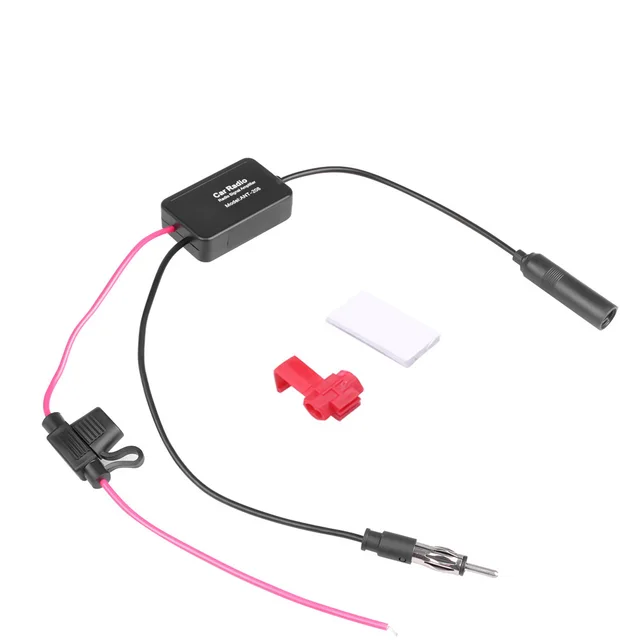

1 x Ant - 208 Car Radio Signal Amplifier
1 x 3M sticker
