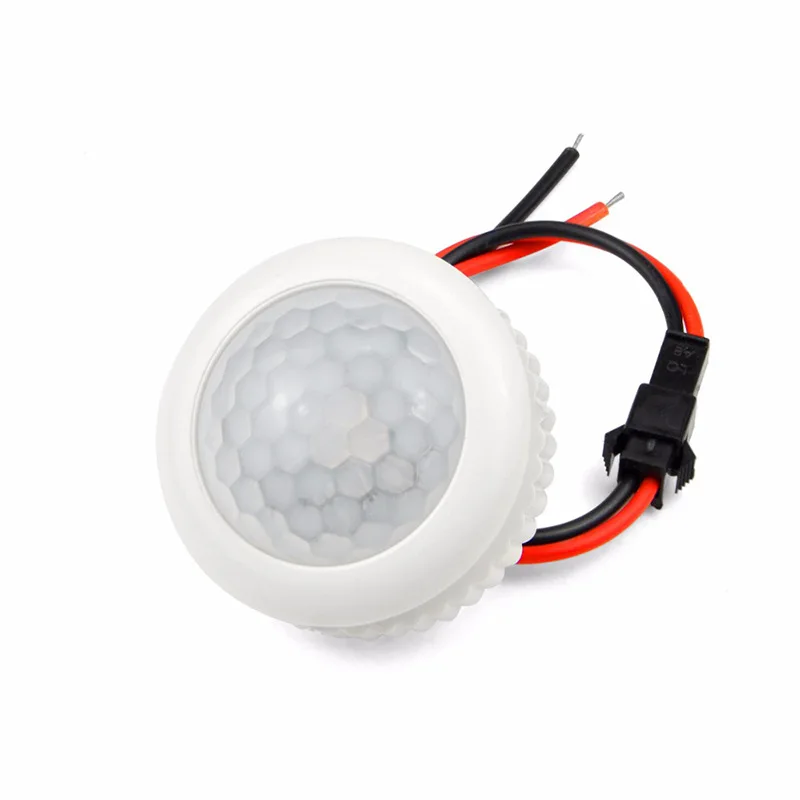

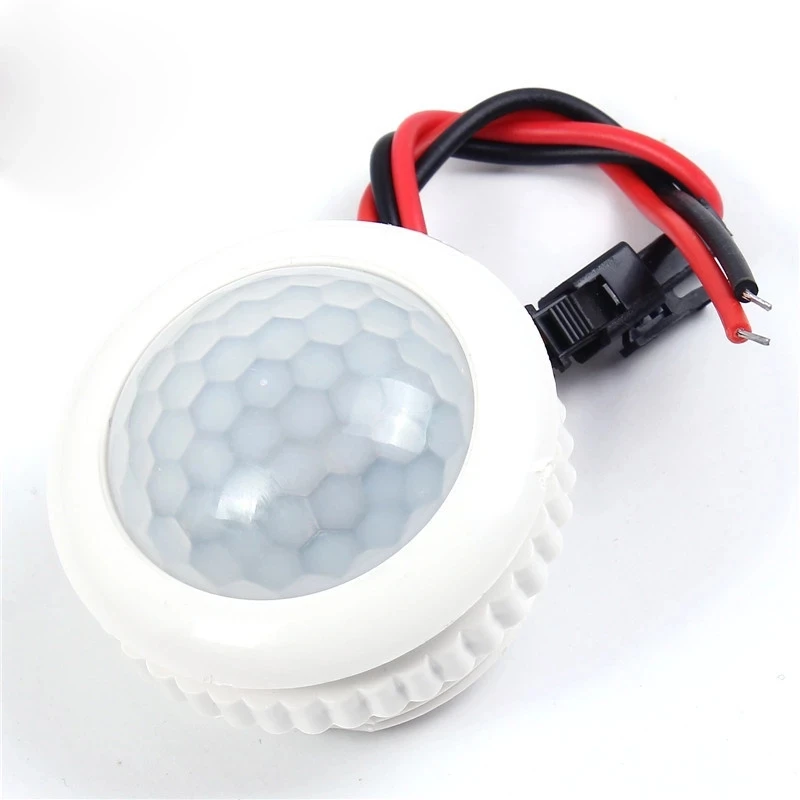

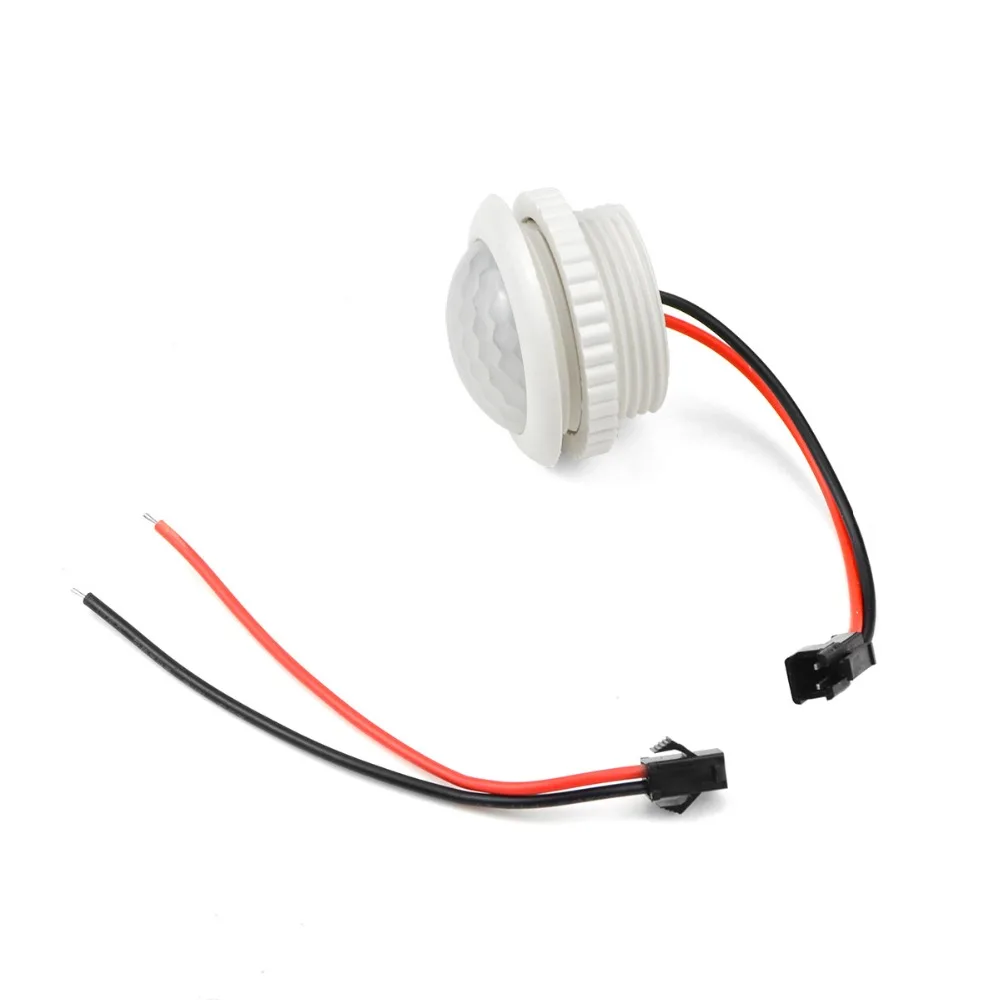

PIR Motion Sensor switch 50HZ Ir Infrared Human Body Indction Sensor Detector ON/Off Control LED lamp home lighting

Features:

*Adaptive to filament, electricity saving lamp *This lamp is internal equipped with auto body sensor.If people come the lamp will power on;if people leave,the lamp will power off. *Inner body auto sensor adopts infrared heat releasing device,and it can accurately capture moving low frequency signal and automatically power on. *When people leave,the lamp will auto delay power off,convenient and energy saving. *Inner side of the lap is set up with auto ambient brightness detecting circuit. *Only when ambient brightness is lower than setting value,the sensor will receive sense and let the lamp power off. *And it is energy saving

Specifications:

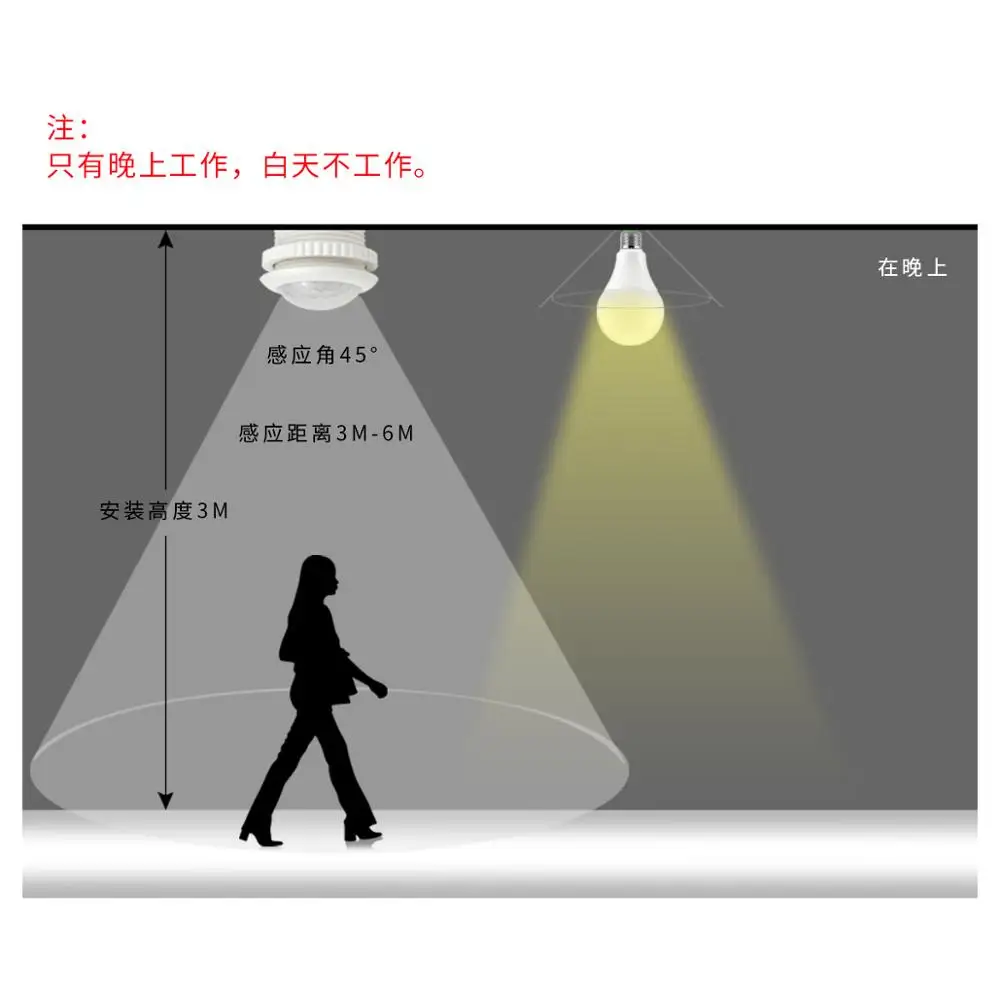

Sensing Mode:PIR Sensing + Light Control Rated Voltage:220V 50HZ Output Way:Controllable Silicon Load Power:Filament lamp ≤100W,Electricity saving lamp ≤30W, LED≤18W Delay:20s (People are moving within the sensing range, the switch will auto delay and keep connecting; if people stay still,switch will stop responsing) Sensing Distance:3-6M (High temperature will influence switch sensibility) Sensing Angle:110° Sensitivity To Light:Darkness

Notice:

-When installing,please disconnect the power to guarantee safety -Don't apply it to overpower current or voltage -Don't install it accessible to water -Detection distance will change according to ambient temperature's difference.In summer,detection distance is short(It is obvious when close to human body's temperature);in winter, detection distance will be far -Don't install it in lower than -20 Celsius or higher than 60 Celsius -Don't expose it to sun -Don't install it in which there are moving objects -The first time power on ,there will one minute initiation;during this period,the device will shine,it is normal phenomenon -In c oast zone,thermal flow will trigger the sensor because of ocean current.If installing filament lamp which emits great heat,please keep far away from the sensor(at least 1m)

Package:

1 X PIR Switch Sensor
