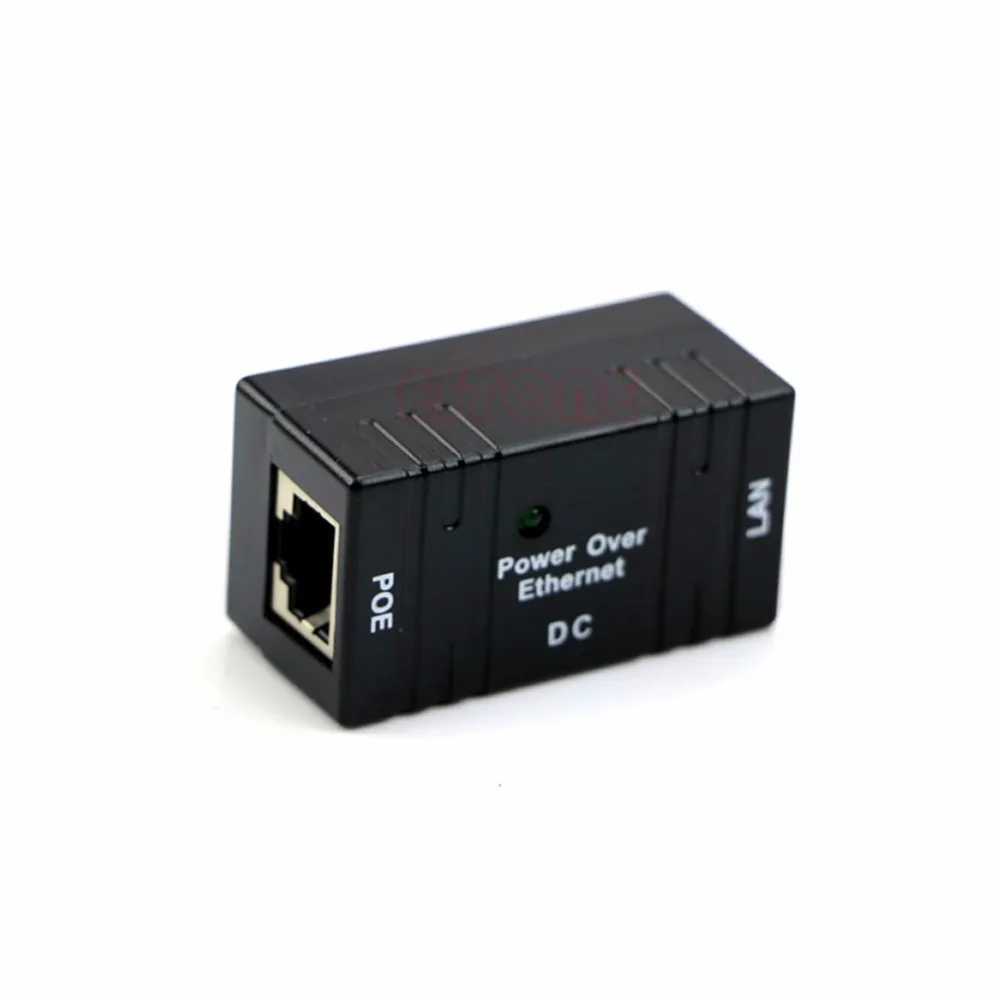

Passive Injector Splitter Wall Mount Power Adapter For IP Networking Camera

Description:

• 100% brand new and high quality
• Feature:
• To achieve best performance of a Wireless LAN, the location of Access Point(AP) must be carefully chosen.In most cases, finding a power supply for AP is a common obstacle
• Power over Ethernet(PoE) technology provides the ideal power solution to help overcome these obstacles.In Ethernet, four pairs of C5 or C5E twisted pairs are used as the medium for transmission
• The actual data transmission, however,only takes up 4-pairs of wires (pairs 1-8). PoE technology utilizesthe remaining pairs(pairs 4-5 and 7-8 to conduct electricity
• Specificiation:
• Product Name:POE Injector / Splitter
• Data PIN:1/2,3/6Power PIN:4/5+ & 7/8-
• Data in:Connects PC/HUB/Switch
• DC Outside negative 5.5 * within positive 2.1mm power supply, by voltage DC 5 ~ 48V
• Maximum current 2000ma
• POE power combiner also called Combiners (without power part)
• Number of ports: 2
• Case of material：ABS 94V-0
• Ethernet Data rate:10/100 Mbp
• Ethernet Cable:TIA/EIA 568 Cat.5
• Ethernet Cable Connector：RJ-45
• Operating Temperature:0 - 40 Degree
• Storage Temperature：-40 - 70 Degree
• Operating Humidity ：10% to 80% RH
• Storage Humidity：5% to 90% RH
• Size：50*25*25mm / 197*0.98*0.98"
• Color: Black
• Weight: 22 g
• Quantity : 1 PC
• Note:
  1. Note this one is for 10M/100M,without adapter, with out earthnet and power connectiong cables.
  2. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
  3. Please allow 1-5mm measuring deviation due to manual measurement.

Package includes:

• 1 x POE injector Splitter

​
